Functions for spatiotemporal bounding boxes. More...
#include <postgres.h>#include <catalog/pg_type.h>#include <utils/timestamp.h>#include <liblwgeom.h>#include "general/timetypes.h"

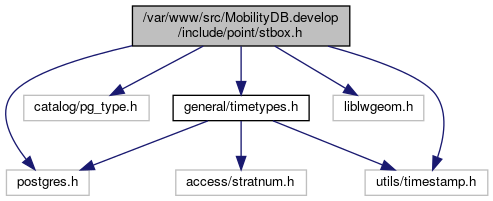

Include dependency graph for stbox.h:

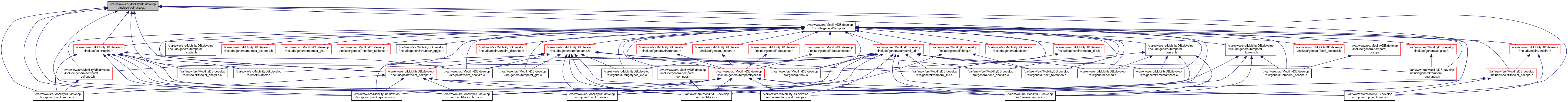

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | STBOX |
| Structure to represent spatiotemporal boxes. More... | |
Macros | |
| #define | DatumGetSTboxP(X) ((STBOX *) DatumGetPointer(X)) |
| #define | STboxPGetDatum(X) PointerGetDatum(X) |
| #define | PG_GETARG_STBOX_P(n) DatumGetSTboxP(PG_GETARG_DATUM(n)) |
| #define | PG_RETURN_STBOX_P(x) return STboxPGetDatum(x) |
Functions | |
| STBOX * | stbox_make (bool hasx, bool hasz, bool hast, bool geodetic, int32 srid, double xmin, double xmax, double ymin, double ymax, double zmin, double zmax, TimestampTz tmin, TimestampTz tmax) |
| Constructs a newly allocated spatiotemporal box. More... | |
| void | stbox_set (STBOX *box, bool hasx, bool hasz, bool hast, bool geodetic, int32 srid, double xmin, double xmax, double ymin, double ymax, double zmin, double zmax, TimestampTz tmin, TimestampTz tmax) |
| Set the spatiotemporal box from the argument values. More... | |
| STBOX * | stbox_copy (const STBOX *box) |
| Returns a copy of the spatiotemporal box. More... | |
| void | stbox_expand (STBOX *box1, const STBOX *box2) |
| Expand the first spatiotemporal box with the second one. More... | |
| void | stbox_shift_tscale (STBOX *box, const Interval *start, const Interval *duration) |
| Shift and/or scale the time span of the spatiotemporal box by the interval. More... | |
| void | ensure_has_X_stbox (const STBOX *box) |
| Ensure that the temporal value has XY dimension. More... | |
| void | ensure_has_T_stbox (const STBOX *box) |
| Ensure that the temporal value has T dimension. More... | |
| Datum | stbox_in (PG_FUNCTION_ARGS) |
| Input function for spatiotemporal boxes. More... | |
| Datum | stbox_out (PG_FUNCTION_ARGS) |
| Output function for spatiotemporal boxes. More... | |
| Datum | stbox_constructor_t (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | stbox_constructor (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | stbox_constructor_z (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | stbox_constructor_zt (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | geodstbox_constructor_t (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | geodstbox_constructor (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | geodstbox_constructor_z (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | geodstbox_constructor_zt (PG_FUNCTION_ARGS) |
| Construct a spatiotemporal box from the arguments. More... | |
| Datum | stbox_to_period (PG_FUNCTION_ARGS) |
| Cast the spatiotemporal box as a period. More... | |
| Datum | stbox_to_box2d (PG_FUNCTION_ARGS) |
| Cast the spatiotemporal box as a GBOX value for PostGIS. More... | |
| Datum | stbox_to_box3d (PG_FUNCTION_ARGS) |
| Cast the spatiotemporal box as a BOX3D value for PostGIS. More... | |
| BOX3D * | stbox_to_box3d_internal (const STBOX *box) |
| GBOX * | stbox_to_gbox (const STBOX *box) |
| Cast the spatiotemporal box as a GBOX value for PostGIS. More... | |
| Datum | box2d_to_stbox (PG_FUNCTION_ARGS) |
| Transform a box2d to a spatiotemporal box. More... | |
| Datum | box3d_to_stbox (PG_FUNCTION_ARGS) |
| Transform a box3d to a spatiotemporal box. More... | |
| Datum | geo_to_stbox (PG_FUNCTION_ARGS) |
| Transform a geometry/geography to a spatiotemporal box. More... | |
| Datum | timestamp_to_stbox (PG_FUNCTION_ARGS) |
| Transform a timestampt to a spatiotemporal box. More... | |
| Datum | timestampset_to_stbox (PG_FUNCTION_ARGS) |
| Transform a timestamp set to a spatiotemporal box. More... | |
| Datum | period_to_stbox (PG_FUNCTION_ARGS) |
| Transform a period to a spatiotemporal box. More... | |
| Datum | periodset_to_stbox (PG_FUNCTION_ARGS) |
| Transform a period set to a spatiotemporal box. More... | |
| Datum | geo_timestamp_to_stbox (PG_FUNCTION_ARGS) |
| Transform a geometry/geography and a timestamp to a spatiotemporal box. More... | |
| Datum | geo_period_to_stbox (PG_FUNCTION_ARGS) |
| Transform a geometry/geography and a period to a spatiotemporal box. More... | |
| bool | geo_to_stbox_internal (STBOX *box, const GSERIALIZED *gs) |
| Transform a geometry/geography to a spatiotemporal box (internal function) More... | |
| void | timestamp_to_stbox_internal (STBOX *box, TimestampTz t) |
| Transform a timestampt to a spatiotemporal box (internal function) More... | |
| void | timestampset_to_stbox_internal (STBOX *box, const TimestampSet *ps) |
| Transform a timestamp set to a spatiotemporal box (internal function) More... | |
| void | period_to_stbox_internal (STBOX *box, const Period *p) |
| Transform a period to a spatiotemporal box (internal function) More... | |
| void | periodset_to_stbox_internal (STBOX *box, const PeriodSet *ps) |
| Transform a period set to a spatiotemporal box (internal function) More... | |
| Datum | stbox_hasx (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal box has X dimension. More... | |
| Datum | stbox_hasz (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal box has Z dimension. More... | |
| Datum | stbox_hast (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal box has T dimension. More... | |
| Datum | stbox_geodetic (PG_FUNCTION_ARGS) |
| Datum | stbox_xmin (PG_FUNCTION_ARGS) |
| Returns the minimum X value of the spatiotemporal box. More... | |
| Datum | stbox_xmax (PG_FUNCTION_ARGS) |
| Returns the maximum X value of the spatiotemporal box. More... | |
| Datum | stbox_ymin (PG_FUNCTION_ARGS) |
| Returns the minimum Y value of the spatiotemporal box. More... | |
| Datum | stbox_ymax (PG_FUNCTION_ARGS) |
| Returns the maximum Y value of the spatiotemporal box. More... | |
| Datum | stbox_zmin (PG_FUNCTION_ARGS) |
| Returns the minimum Z value of the spatiotemporal box. More... | |
| Datum | stbox_zmax (PG_FUNCTION_ARGS) |
| Returns the maximum Z value of the spatiotemporal box. More... | |
| Datum | stbox_tmin (PG_FUNCTION_ARGS) |
| Returns the minimum timestamp value of the spatiotemporal box. More... | |
| Datum | stbox_tmax (PG_FUNCTION_ARGS) |
| Returns the maximum timestamp value of the spatiotemporal box. More... | |
| Datum | stbox_srid (PG_FUNCTION_ARGS) |
| Returns the SRID of the spatiotemporal box. More... | |
| Datum | stbox_set_srid (PG_FUNCTION_ARGS) |
| Sets the SRID of the spatiotemporal box. More... | |
| Datum | stbox_transform (PG_FUNCTION_ARGS) |
| Transform a spatiotemporal box into another spatial reference system. More... | |
| Datum | stbox_expand_spatial (PG_FUNCTION_ARGS) |
| Expand the spatial dimension of the spatiotemporal box with the double value. More... | |
| Datum | stbox_expand_temporal (PG_FUNCTION_ARGS) |
| Expand the temporal dimension of the spatiotemporal box with the interval value. More... | |
| Datum | stbox_set_precision (PG_FUNCTION_ARGS) |
| Sets the precision of the coordinates of the spatiotemporal box. More... | |
| STBOX * | stbox_expand_spatial_internal (STBOX *box, double d) |
| Expand the spatial dimension of the spatiotemporal box with the double value (internal function) More... | |
| STBOX * | stbox_expand_temporal_internal (STBOX *box, Datum interval) |
| Expand the temporal dimension of the spatiotemporal box with the interval value (internal function) More... | |
| Datum | contains_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box contains the second one. More... | |
| Datum | contained_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is contained by the second one. More... | |
| Datum | overlaps_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal boxes overlap. More... | |
| Datum | same_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal boxes are equal on the common dimensions. More... | |
| Datum | adjacent_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the spatiotemporal boxes are adjacent. More... | |
| bool | contains_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box contains the second one (internal function) More... | |
| bool | contained_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is contained by the second one (internal function) More... | |
| bool | overlaps_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the spatiotemporal boxes overlap (internal function) More... | |
| bool | same_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the spatiotemporal boxes are equal on the common dimensions (internal function) More... | |
| bool | adjacent_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the spatiotemporal boxes are adjacent (internal function) More... | |
| Datum | left_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly to the left of the second one. More... | |
| Datum | overleft_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box does not extend to the right of the second one. More... | |
| Datum | right_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly to the right of the second one. More... | |
| Datum | overright_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatio temporal box does not extend to the left of the second one. More... | |
| Datum | below_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly below of the second one. More... | |
| Datum | overbelow_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box does not extend above of the second one. More... | |
| Datum | above_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly above of the second one. More... | |
| Datum | overabove_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box does not extend below of the second one. More... | |
| Datum | front_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly in front of the second one. More... | |
| Datum | overfront_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box does not extend to the back of the second one. More... | |
| Datum | back_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly back of the second one. More... | |
| Datum | overback_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box does not extend to the front of the second one. More... | |
| Datum | before_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly before the second one. More... | |
| Datum | overbefore_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first temporal box does not extend after the second one. More... | |
| Datum | after_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is strictly after the second one. More... | |
| Datum | overafter_stbox_stbox (PG_FUNCTION_ARGS) |
| Returns true if the first temporal box does not extend before the second one. More... | |
| bool | left_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly to the left of the second one (internal function) More... | |
| bool | overleft_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box does not extend to the right of the second one (internal function) More... | |
| bool | right_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly to the right of the second one (internal function) More... | |
| bool | overright_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatio temporal box does not extend to the left of the second one (internal function) More... | |
| bool | below_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly below of the second one (internal function) More... | |
| bool | overbelow_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box does not extend above of the second one (internal function) More... | |
| bool | above_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly above of the second one (internal function) More... | |
| bool | overabove_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box does not extend below of the second one (internal function) More... | |
| bool | front_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly in front of the second one (internal function) More... | |
| bool | overfront_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box does not extend to the back of the second one (internal function) More... | |
| bool | back_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly back of the second one (internal function) More... | |
| bool | overback_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box does not extend to the front of the second one (internal function) More... | |
| bool | before_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly before the second one (internal function) More... | |
| bool | overbefore_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first temporal box does not extend after the second one (internal function) More... | |
| bool | after_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first spatiotemporal box is strictly after the second one (internal function) More... | |
| bool | overafter_stbox_stbox_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the first temporal box does not extend before the second one (internal function) More... | |
| Datum | stbox_union (PG_FUNCTION_ARGS) |
| Returns the union of the spatiotemporal boxes. More... | |
| Datum | stbox_intersection (PG_FUNCTION_ARGS) |
| Returns the intersection of the spatiotemporal boxes. More... | |
| STBOX * | stbox_union_internal (const STBOX *box1, const STBOX *box2, bool strict) |
| Returns the union of the spatiotemporal boxes (internal function) More... | |
| STBOX * | stbox_intersection_internal (const STBOX *box1, const STBOX *box2) |
| Returns the intersection of the spatiotemporal boxes (internal function) More... | |
| Datum | stbox_cmp (PG_FUNCTION_ARGS) |
| Returns -1, 0, or 1 depending on whether the first spatiotemporal box is less than, equal, or greater than the second one. More... | |
| Datum | stbox_eq (PG_FUNCTION_ARGS) |
| Returns true if the two spatiotemporal boxes are equal. More... | |
| Datum | stbox_ne (PG_FUNCTION_ARGS) |
| Returns true if the two spatiotemporal boxes are different. More... | |
| Datum | stbox_lt (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is less than the second one. More... | |
| Datum | stbox_le (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is less than or equal to the second one. More... | |
| Datum | stbox_gt (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is greater than the second one. More... | |
| Datum | stbox_ge (PG_FUNCTION_ARGS) |
| Returns true if the first spatiotemporal box is greater than or equal to the second one. More... | |
| int | stbox_cmp_internal (const STBOX *box1, const STBOX *box2) |
| Returns -1, 0, or 1 depending on whether the first spatiotemporal box is less than, equal, or greater than the second one (internal function) More... | |
| bool | stbox_eq_internal (const STBOX *box1, const STBOX *box2) |
| Returns true if the two spatiotemporal boxes are equal (internal function) More... | |
Detailed Description
Functions for spatiotemporal bounding boxes.
