Output of temporal points in WKT, EWKT, WKB, EWKB, and MF-JSON format. More...
#include "point/tpoint_out.h"#include <assert.h>#include <float.h>#include <utils/builtins.h>#include "general/temporaltypes.h"#include "general/tempcache.h"#include "general/temporal_util.h"#include "point/tpoint.h"#include "point/tpoint_spatialfuncs.h"

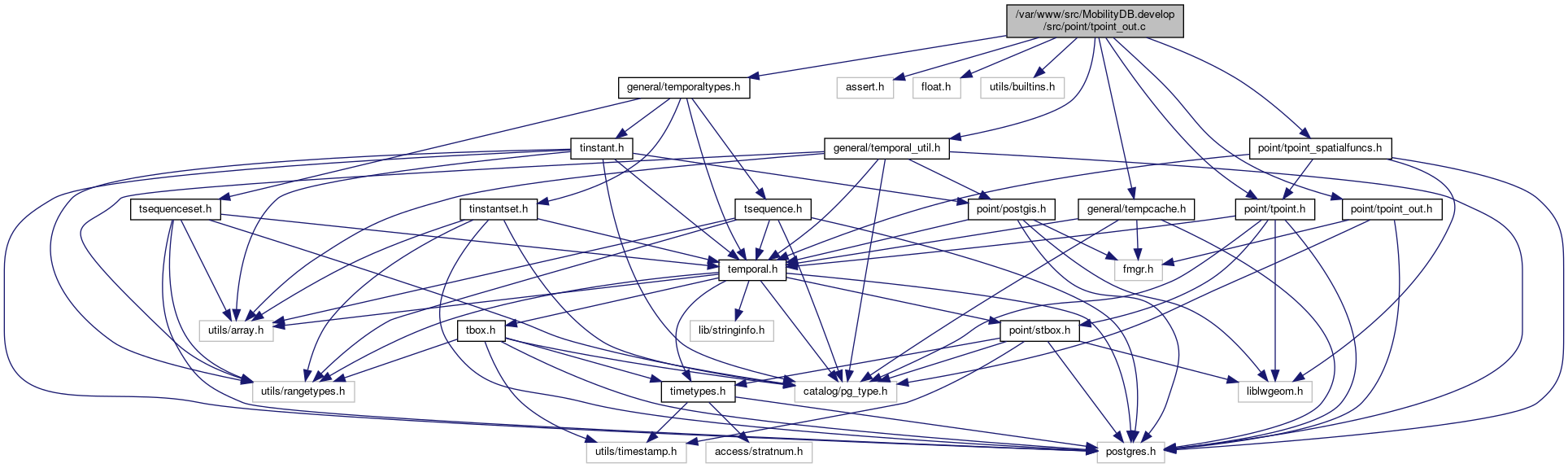

Include dependency graph for tpoint_out.c:
Macros | |
| #define | OUT_SHOW_DIGS_DOUBLE 20 |
| #define | OUT_MAX_DOUBLE_PRECISION 15 |
| #define | OUT_MAX_DIGS_DOUBLE (OUT_SHOW_DIGS_DOUBLE + 2) /* +2 mean add dot and sign */ |
| #define | OUT_DOUBLE_BUFFER_SIZE OUT_MAX_DIGS_DOUBLE + OUT_MAX_DOUBLE_PRECISION + 1 |
| #define | WKT_ISO 0x01 |
| Variants available for WKB and WKT output types. More... | |
| #define | WKT_EXTENDED 0x04 |
Functions | |
| static char * | wkt_out (Oid type, Datum value) |
| Output a geometry in Well-Known Text (WKT) format. More... | |
| char * | ewkt_out (Oid type, Datum value) |
| Output a geometry in Extended Well-Known Text (EWKT) format, that is, in WKT format prefixed with the SRID. More... | |
| static char * | tpoint_as_text_internal1 (const Temporal *temp) |
| Output a temporal point in Well-Known Text (WKT) format (dispatch function) More... | |
| static text * | tpoint_as_text_internal (const Temporal *temp) |
| Output a temporal point in Well-Known Text (WKT) format. More... | |
| PGDLLEXPORT Datum | tpoint_as_text (PG_FUNCTION_ARGS) |
| Output a temporal point in Well-Known Text (WKT) format. More... | |
| static text * | tpoint_as_ewkt_internal (const Temporal *temp) |
| Output a temporal point in Extended Well-Known Text (EWKT) format, that is, in WKT format prefixed with the SRID (dispatch function) More... | |
| PGDLLEXPORT Datum | tpoint_as_ewkt (PG_FUNCTION_ARGS) |
| Output a temporal point in Extended Well-Known Text (EWKT) format, that is, in WKT format prefixed with the SRID. More... | |
| Datum | geoarr_as_text1 (FunctionCallInfo fcinfo, bool extended) |
| Output a geometry/geography array in Well-Known Text (WKT) format. More... | |
| PGDLLEXPORT Datum | geoarr_as_text (PG_FUNCTION_ARGS) |
| Output a geometry/geography array in Well-Known Text (WKT) format. More... | |
| PGDLLEXPORT Datum | geoarr_as_ewkt (PG_FUNCTION_ARGS) |
| Output a geometry/geography array in Extended Well-Known Text (EWKT) format, that is, in WKT format prefixed with the SRID. More... | |
| Datum | tpointarr_as_text1 (FunctionCallInfo fcinfo, bool extended) |
| Output a temporal point array in Well-Known Text (WKT) or Extended Well-Known Text (EWKT) format. More... | |
| PGDLLEXPORT Datum | tpointarr_as_text (PG_FUNCTION_ARGS) |
| Output a temporal point array in Well-Known Text (WKT) format. More... | |
| PGDLLEXPORT Datum | tpointarr_as_ewkt (PG_FUNCTION_ARGS) |
| Output a temporal point array in Extended Well-Known Text (EWKT) format, that is, in WKT format prefixed with the SRID. More... | |
| static size_t | coordinates_mfjson_size (int npoints, bool hasz, int precision) |
| Returns the maximum size in bytes of the coordinate array represented in MF-JSON format. More... | |
| static size_t | coordinates_mfjson_buf (char *output, const TInstant *inst, int precision) |
| Writes into the buffer the coordinate array represented in MF-JSON format. More... | |
| static size_t | datetimes_mfjson_size (int npoints) |
| Returns the maximum size in bytes of the datetimes array represented in MF-JSON format. More... | |
| static size_t | datetimes_mfjson_buf (char *output, const TInstant *inst) |
| Writes into the buffer the datetimes array represented in MF-JSON format. More... | |
| static size_t | srs_mfjson_size (char *srs) |
| Returns the maximum size in bytes of the SRS represented in MF-JSON format. More... | |
| static size_t | srs_mfjson_buf (char *output, char *srs) |
| Writes into the buffer the SRS represented in MF-JSON format. More... | |
| static size_t | bbox_mfjson_size (int hasz, int precision) |
| Returns the maximum size in bytes of the bouding box represented in MF-JSON format. More... | |
| static size_t | bbox_mfjson_buf (char *output, const STBOX *bbox, int hasz, int precision) |
| Writes into the buffer the bouding box represented in MF-JSON format. More... | |
| static size_t | tpointinst_as_mfjson_size (const TInstant *inst, int precision, const STBOX *bbox, char *srs) |
| Returns the maximum size in bytes of a temporal instant point represented in MF-JSON format. More... | |
| static size_t | tpointinst_as_mfjson_buf (const TInstant *inst, int precision, const STBOX *bbox, char *srs, char *output) |
| Writes into the buffer the temporal instant point represented in MF-JSON format. More... | |
| static char * | tpointinst_as_mfjson (const TInstant *inst, int precision, const STBOX *bbox, char *srs) |
| Returns the temporal instant point represented in MF-JSON format. More... | |
| static size_t | tpointinstset_as_mfjson_size (const TInstantSet *ti, int precision, const STBOX *bbox, char *srs) |
| Returns the maximum size in bytes of a temporal instant set point represented in MF-JSON format. More... | |
| static size_t | tpointinstset_as_mfjson_buf (const TInstantSet *ti, int precision, const STBOX *bbox, char *srs, char *output) |
| Writes into the buffer the temporal instant set point represented in MF-JSON format. More... | |
| static char * | tpointinstset_as_mfjson (const TInstantSet *ti, int precision, const STBOX *bbox, char *srs) |
| Returns the temporal instant set point represented in MF-JSON format. More... | |
| static size_t | tpointseq_as_mfjson_size (const TSequence *seq, int precision, const STBOX *bbox, char *srs) |
| Returns the maximum size in bytes of a temporal sequence point represented in MF-JSON format. More... | |
| static size_t | tpointseq_as_mfjson_buf (const TSequence *seq, int precision, const STBOX *bbox, char *srs, char *output) |
| Writes into the buffer the temporal sequence point represented in MF-JSON format. More... | |
| static char * | tpointseq_as_mfjson (const TSequence *seq, int precision, const STBOX *bbox, char *srs) |
| Returns the temporal sequence point represented in MF-JSON format. More... | |
| static size_t | tpointseqset_as_mfjson_size (const TSequenceSet *ts, int precision, const STBOX *bbox, char *srs) |
| Returns the maximum size in bytes of a temporal sequence set point represented in MF-JSON format. More... | |
| static size_t | tpointseqset_as_mfjson_buf (const TSequenceSet *ts, int precision, const STBOX *bbox, char *srs, char *output) |
| Writes into the buffer the temporal sequence set point represented in MF-JSON format. More... | |
| static char * | tpointseqset_as_mfjson (const TSequenceSet *ts, int precision, const STBOX *bbox, char *srs) |
| Returns the temporal sequence set point represented in MF-JSON format. More... | |
| PGDLLEXPORT Datum | tpoint_as_mfjson (PG_FUNCTION_ARGS) |
| Returns the temporal point represented in MF-JSON format. More... | |
| static uint8_t * | endian_to_wkb_buf (uint8_t *buf, uint8_t variant) |
| Writes into the buffer the Endian represented in Well-Known Binary (WKB) format. More... | |
| static bool | wkb_swap_bytes (uint8_t variant) |
| Returns true if the bytes must be swaped dependng of the variant. More... | |
| static uint8_t * | integer_to_wkb_buf (const int ival, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the Integer32 represented in Well-Known Binary (WKB) format. More... | |
| static uint8_t * | double_to_wkb_buf (double d, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the float64 represented in Well-Known Binary (WKB) format. More... | |
| static uint8_t * | timestamp_to_wkb_buf (TimestampTz t, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the TimestampTz (aka int64) represented in Well-Known Binary (WKB) format. More... | |
| static bool | tpoint_wkb_needs_srid (const Temporal *temp, uint8_t variant) |
| Returns true if the temporal point needs to output the SRID. More... | |
| static size_t | tpointinstarr_to_wkb_size (int npoints, bool hasz, uint8_t variant) |
| Returns the maximum size in bytes of an array of temporal instant points represented in Well-Known Binary (WKB) format. More... | |
| static size_t | tpointinst_to_wkb_size (const TInstant *inst, uint8_t variant) |
| Returns the maximum size in bytes of the temporal instant point represented in Well-Known Binary (WKB) format. More... | |
| static size_t | tpointinstset_to_wkb_size (const TInstantSet *ti, uint8_t variant) |
| Returns the maximum size in bytes of the temporal instant set point represented in Well-Known Binary (WKB) format. More... | |
| static size_t | tpointseq_to_wkb_size (const TSequence *seq, uint8_t variant) |
| Returns the maximum size in bytes of the temporal sequence point represented in Well-Known Binary (WKB) format. More... | |
| static size_t | tpointseqset_to_wkb_size (const TSequenceSet *ts, uint8_t variant) |
| Returns the maximum size in bytes of the temporal sequence set point represented in Well-Known Binary (WKB) format. More... | |
| static size_t | tpoint_to_wkb_size (const Temporal *temp, uint8_t variant) |
| Returns the maximum size in bytes of the temporal point represented in Well-Known Binary (WKB) format (dispatch function) More... | |
| static uint8_t * | tpoint_wkb_type (const Temporal *temp, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the flag containing the temporal type and other characteristics represented in Well-Known Binary (WKB) format. More... | |
| static uint8_t * | coords_ts_to_wkb_buf (const TInstant *inst, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the coordinates of the temporal instant point represented in Well-Known Binary (WKB) format as follows. More... | |
| static uint8_t * | tpointinst_to_wkb_buf (const TInstant *inst, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the temporal instant point represented in Well-Known Binary (WKB) format as follows. More... | |
| static uint8_t * | tpointinstset_to_wkb_buf (const TInstantSet *ti, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the temporal instant set point represented in Well-Known Binary (WKB) format as follows. More... | |
| static uint8_t * | tpointseq_wkb_bounds (const TSequence *seq, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the flag containing the bounds represented in Well-Known Binary (WKB) format as follows xxxxxxUL x = Unused bits, U = Upper inclusive, L = Lower inclusive. More... | |
| static uint8_t * | tpointseq_to_wkb_buf (const TSequence *seq, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the temporal sequence point represented in Well-Known Binary (WKB) format as follows. More... | |
| static uint8_t * | tpointseqset_to_wkb_buf (const TSequenceSet *ts, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the temporal sequence set point represented in Well-Known Binary (WKB) format as follows. More... | |
| static uint8_t * | tpoint_to_wkb_buf (const Temporal *temp, uint8_t *buf, uint8_t variant) |
| Writes into the buffer the temporal point represented in Well-Known Binary (WKB) format. More... | |
| static uint8_t * | tpoint_to_wkb (const Temporal *temp, uint8_t variant, size_t *size_out) |
| Convert the temporal value to a char * in WKB format. More... | |
| static void | ensure_valid_endian_flag (const char *endian) |
| Ensures that the spatiotemporal boxes have the same type of coordinates, either planar or geodetic. More... | |
| Datum | tpoint_as_binary1 (FunctionCallInfo fcinfo, bool extended) |
| Output the temporal point in WKB or EWKB format. More... | |
| PGDLLEXPORT Datum | tpoint_as_binary (PG_FUNCTION_ARGS) |
| Output a temporal point in WKB format. More... | |
| PGDLLEXPORT Datum | tpoint_as_ewkb (PG_FUNCTION_ARGS) |
| Output the temporal point in EWKB format. More... | |
| PGDLLEXPORT Datum | tpoint_as_hexewkb (PG_FUNCTION_ARGS) |
| Output the temporal point in HexEWKB format. More... | |
Variables | |
| static char * | hexchr = "0123456789ABCDEF" |
| Look-up table for hex writer. More... | |
Detailed Description
Output of temporal points in WKT, EWKT, WKB, EWKB, and MF-JSON format.
