#include <postgres.h>#include <liblwgeom.h>#include "general/temporal.h"#include "point/tpoint.h"

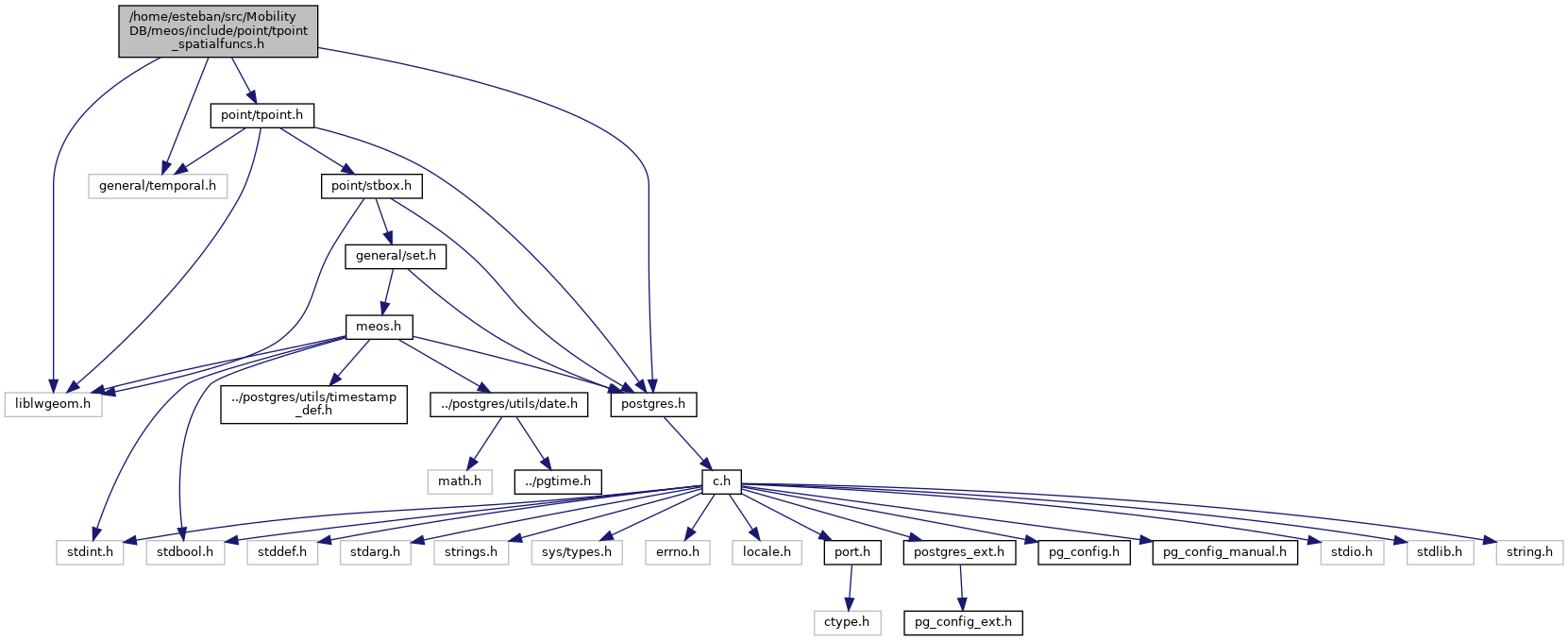

Include dependency graph for tpoint_spatialfuncs.h:
Go to the source code of this file.
Macros | |
| #define | GEOG_TO_GEOM false |
| #define | GEOM_TO_GEOG true |
| Spatial functions for temporal points. More... | |
Functions | |
| long double | closest_point2d_on_segment_ratio (const POINT2D *p, const POINT2D *A, const POINT2D *B, POINT2D *closest) |
| Return a long double between 0 and 1 representing the location of the closest point on the segment to the given point, as a fraction of total segment length (2D version) More... | |
| long double | closest_point3dz_on_segment_ratio (const POINT3DZ *p, const POINT3DZ *A, const POINT3DZ *B, POINT3DZ *closest) |
| Return a float between 0 and 1 representing the location of the closest point on the segment to the given point, as a fraction of total segment length (3D version) More... | |
| long double | closest_point_on_segment_sphere (const POINT4D *p, const POINT4D *A, const POINT4D *B, POINT4D *closest, double *dist) |
| Return a float between 0 and 1 representing the location of the closest point on the geography segment to the given point, as a fraction of total segment length. More... | |
| Datum | datum2_point_eq (Datum geopoint1, Datum geopoint2) |
| Return true if the points are equal. More... | |
| Datum | datum2_point_ne (Datum geopoint1, Datum geopoint2) |
| Return true if the points are equal. More... | |
| POINT2D | datum_point2d (Datum value) |
| Return a 2D point from the datum. More... | |
| const POINT2D * | datum_point2d_p (Datum value) |
| Return a pointer to a 2D point from the datum. More... | |
| POINT3DZ | datum_point3dz (Datum value) |
| Return a 3DZ point from the datum. More... | |
| const POINT3DZ * | datum_point3dz_p (Datum value) |
| Return a pointer to a 3DZ point from the datum. More... | |
| void | datum_point4d (Datum value, POINT4D *p) |
| Return a 4D point from the datum. More... | |
| bool | datum_point_eq (Datum geopoint1, Datum geopoint2) |
| Return true if the points are equal. More... | |
| Datum | datum_round_geo (Datum value, Datum prec) |
| Set the precision of the coordinates to the number of decimal places. More... | |
| Datum | datum_transform (Datum value, Datum srid) |
| Call the PostGIS transform function. More... | |
| datum_func2 | distance_fn (int16 flags) |
| Select the appropriate distance function. More... | |
| void | ensure_has_M_gs (const GSERIALIZED *gs) |
| Ensure that the geometry/geography has M dimension. More... | |
| void | ensure_has_not_M_gs (const GSERIALIZED *gs) |
| Ensure that the geometry/geography has not M dimension. More... | |
| void | ensure_has_not_Z (int16 flags) |
| Ensure that a temporal point has not Z dimension. More... | |
| void | ensure_has_not_Z_gs (const GSERIALIZED *gs) |
| Ensure that the geometry/geography has not Z dimension. More... | |
| void | ensure_has_Z (int16 flags) |
| Ensure that a temporal point has Z dimension. More... | |
| void | ensure_has_Z_gs (const GSERIALIZED *gs) |
| Ensure that the geometry/geography has not Z dimension. More... | |
| void | ensure_non_empty (const GSERIALIZED *gs) |
| Ensure that the geometry/geography is not empty. More... | |
| void | ensure_not_geodetic (int16 flags) |
| Ensure that the spatiotemporal argument has planar coordinates. More... | |
| void | ensure_point_type (const GSERIALIZED *gs) |
| Ensure that the geometry/geography is a point. More... | |
| void | ensure_same_dimensionality (int16 flags1, int16 flags2) |
| Ensure that two temporal points have the same dimensionality as given by their flags. More... | |
| void | ensure_same_dimensionality_gs (const GSERIALIZED *gs1, const GSERIALIZED *gs2) |
| Ensure that two geometries/geographies have the same dimensionality. More... | |
| void | ensure_same_dimensionality_tpoint_gs (const Temporal *temp, const GSERIALIZED *gs) |
| Ensure that a temporal point and a geometry/geography have the same dimensionality. More... | |
| void | ensure_same_geodetic (int16 flags1, int16 flags2) |
| Ensure that the spatiotemporal argument have the same type of coordinates, either planar or geodetic. More... | |
| void | ensure_same_spatial_dimensionality (int16 flags1, int16 flags2) |
| Ensure that two temporal points have the same spatial dimensionality as given by their flags. More... | |
| void | ensure_same_spatial_dimensionality_stbox_gs (const STBox *box1, const GSERIALIZED *gs) |
| Ensure that the spatiotemporal boxes have the same spatial dimensionality. More... | |
| void | ensure_same_spatial_dimensionality_temp_box (int16 flags1, int16 flags2) |
| Ensure that a temporal point and a spatiotemporal box have the same spatial dimensionality as given by their flags. More... | |
| void | ensure_same_srid (int32_t srid1, int32_t srid2) |
| Ensure that the two spatial "objects" have the same SRID. More... | |
| void | ensure_same_srid_stbox (const STBox *box1, const STBox *box2) |
| Ensure that the spatiotemporal boxes have the same SRID. More... | |
| void | ensure_same_srid_stbox_gs (const STBox *box, const GSERIALIZED *gs) |
| Ensure that a temporal point and a geometry/geography have the same SRID. More... | |
| void | ensure_same_srid_tpoint_stbox (const Temporal *temp, const STBox *box) |
| Ensure that a temporal point and a spatiotemporal boxes have the same SRID. More... | |
| void | ensure_spatial_validity (const Temporal *temp1, const Temporal *temp2) |
| Ensure that the spatial constraints required for operating on two temporal geometries are satisfied. More... | |
| GSERIALIZED * | geo_serialize (const LWGEOM *geom) |
| Serialize a geometry/geography. More... | |
| Datum | geog_distance (Datum geog1, Datum geog2) |
| Return the distance between the two geographies. More... | |
| Datum | geom_distance2d (Datum geom1, Datum geom2) |
| Return the 2D distance between the two geometries. More... | |
| Datum | geom_distance3d (Datum geom1, Datum geom2) |
| Return the 3D distance between the two geometries. More... | |
| Datum | geom_intersection2d (Datum geom1, Datum geom2) |
| Return the 2D intersection between the two geometries. More... | |
| bool | geopoint_collinear (Datum value1, Datum value2, Datum value3, double ratio, bool hasz, bool geodetic) |
| Return true if the three values are collinear. More... | |
| Datum | geosegm_interpolate_point (Datum start, Datum end, long double ratio) |
| Return a point interpolated from the geometry/geography segment with respect to the fraction of its total length. More... | |
| long double | geosegm_locate_point (Datum start, Datum end, Datum point, double *dist) |
| Return a float between 0 and 1 representing the location of the closest point on the geometry segment to the given point, as a fraction of total segment length. More... | |
| const POINT2D * | gserialized_point2d_p (const GSERIALIZED *gs) |
| Return a 2D point from the serialized geometry. More... | |
| const POINT3DZ * | gserialized_point3dz_p (const GSERIALIZED *gs) |
| Return a 3DZ point from the serialized geometry. More... | |
| GSERIALIZED * | gspoint_make (double x, double y, double z, bool hasz, bool geodetic, int32 srid) |
| Create a point. More... | |
| void | interpolate_point4d_sphere (const POINT3D *p1, const POINT3D *p2, const POINT4D *v1, const POINT4D *v2, double f, POINT4D *p) |
| Find interpolation point p between geography points p1 and p2 so that the len(p1,p) == len(p1,p2) f and p falls on p1,p2 segment. More... | |
| LWLINE * | lwline_make (Datum value1, Datum value2) |
| Compute the trajectory from two geometry points. More... | |
| LWGEOM * | lwpointarr_make_trajectory (LWGEOM **lwpoints, int count, interpType interp) |
| Compute a trajectory from a set of points. More... | |
| LWGEOM ** | lwpointarr_remove_duplicates (LWGEOM **points, int count, int *newcount) |
| Remove duplicates from an array of LWGEOM points. More... | |
| Datum | pt_distance2d (Datum geom1, Datum geom2) |
| Return the 2D distance between the two geometric points. More... | |
| Datum | pt_distance3d (Datum geom1, Datum geom2) |
| Return the 3D distance between the two geometric points. More... | |
| datum_func2 | pt_distance_fn (int16 flags) |
| Select the appropriate distance function. More... | |
| bool | tgeogpointsegm_intersection (const TInstant *start1, const TInstant *end1, const TInstant *start2, const TInstant *end2, TimestampTz *t) |
| Return true if two segments of twp temporal geographic points intersect at a timestamp. More... | |
| bool | tgeompointsegm_intersection (const TInstant *start1, const TInstant *end1, const TInstant *start2, const TInstant *end2, TimestampTz *t) |
| Return true if two segments of a temporal geometric points intersect at a timestamp. More... | |
| Temporal * | tpoint_at_stbox1 (const Temporal *temp, const STBox *box, bool upper_inc) |
| Restrict a temporal point to a spatiotemporal box. More... | |
| Temporal * | tpoint_get_coord (const Temporal *temp, int coord) |
| Get one of the coordinates of a temporal point as a temporal float. More... | |
| Temporal * | tpoint_minus_stbox (const Temporal *temp, const STBox *box) |
| Restrict a temporal point to the complement of a spatiotemporal box. More... | |
| Temporal * | tpoint_round (const Temporal *temp, int prec) |
| Set the precision of the coordinates of a temporal point to a number of decimal places. More... | |
| Temporal * | tpoint_transform (const Temporal *temp, int srid) |
| Transform a temporal point into another spatial reference system. More... | |
| TSequence * | tpointcontseq_transform (const TSequence *seq, int srid) |
| TSequence * | tpointdiscseq_transform (const TSequence *is, int srid) |
| TInstant * | tpointinst_transform (const TInstant *inst, int srid) |
| Transform a temporal point into another spatial reference system. More... | |
| bool | tpointsegm_intersection_value (const TInstant *inst1, const TInstant *inst2, Datum value, TimestampTz *t) |
| Return true if a segment of a temporal point value intersects a point at the timestamp. More... | |
| TSequence ** | tpointseq_at_geometry (const TSequence *seq, const GSERIALIZED *gs, int *count) |
| Restrict a temporal point to (the complement of) a geometry. More... | |
| Span ** | tpointseq_interperiods (const TSequence *seq, GSERIALIZED *gsinter, int *count) |
| Get the periods at which a temporal sequence point with linear interpolation intersects a geometry. More... | |
| TSequenceSet * | tpointseqset_transform (const TSequenceSet *ss, int srid) |
| Transform a temporal point into another spatial reference system. More... | |
